Kmise Electric Guitar DIY Neck Unfinished Clear Satin Canada Maple 22 Frets Bolt On Dual Truss RodDescriptions about this Electric Guitar Neck DIY Replacement :

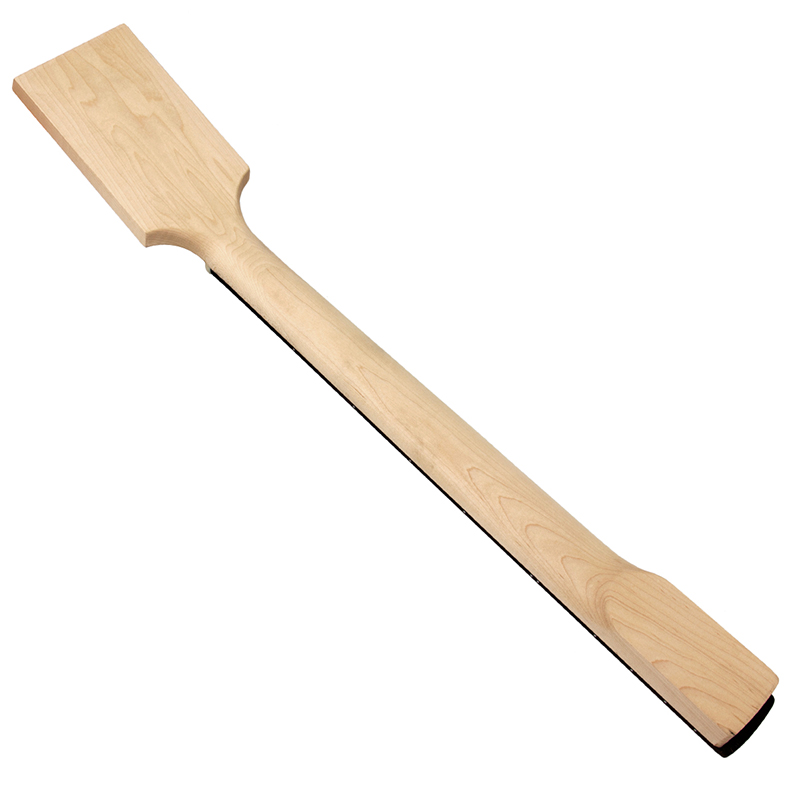

Product Name :Kmise Electric Guitar Neck DIY Part Unfinished Canada Maple Rose Wood Finger Board 22 Frets
Style: Unfinished for Electric Guitar DIY
Material:

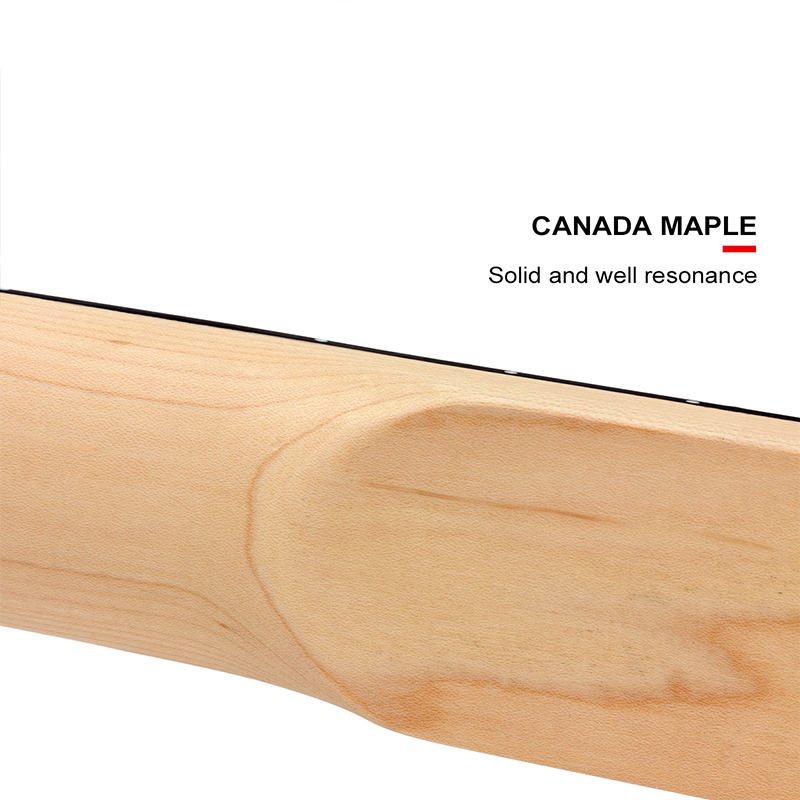

Material: Maple Origin from Canada
Finish: Clear Satin
Fret Wire: Cupronickel
Mark Dot: White Abalone Block
Specification:
Installation Size:

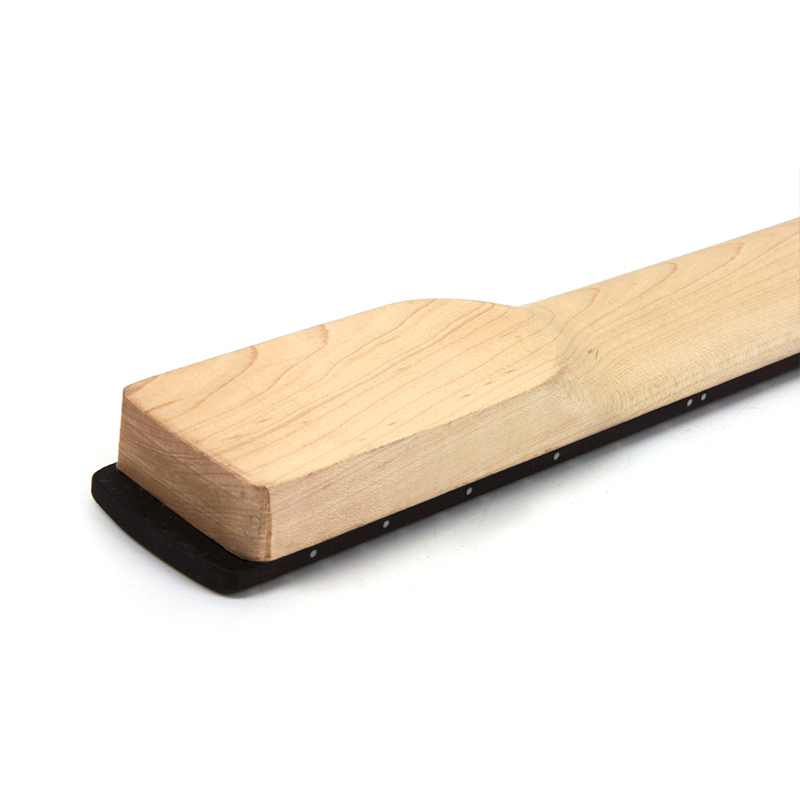

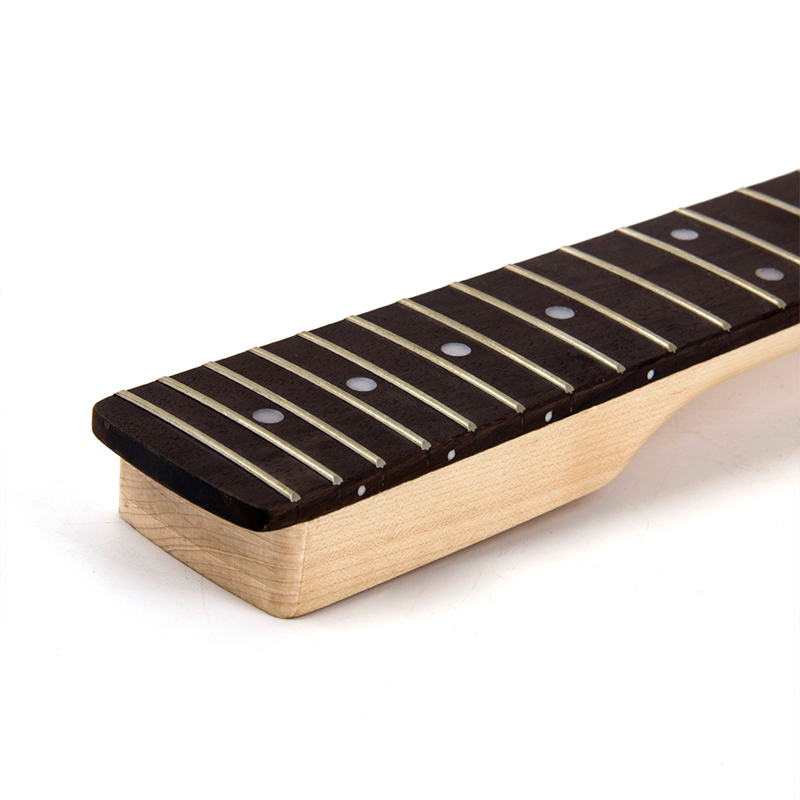

Width at Heel :2.22 inch / 56.50 mm (± 0.5 mm Deviation)
Depth at Heel : 0.83 inch / 1.08 inch with Fingerboard (21.00mm / 27.50mm(±0.5mm Deviation))
Installation: Bolt-On

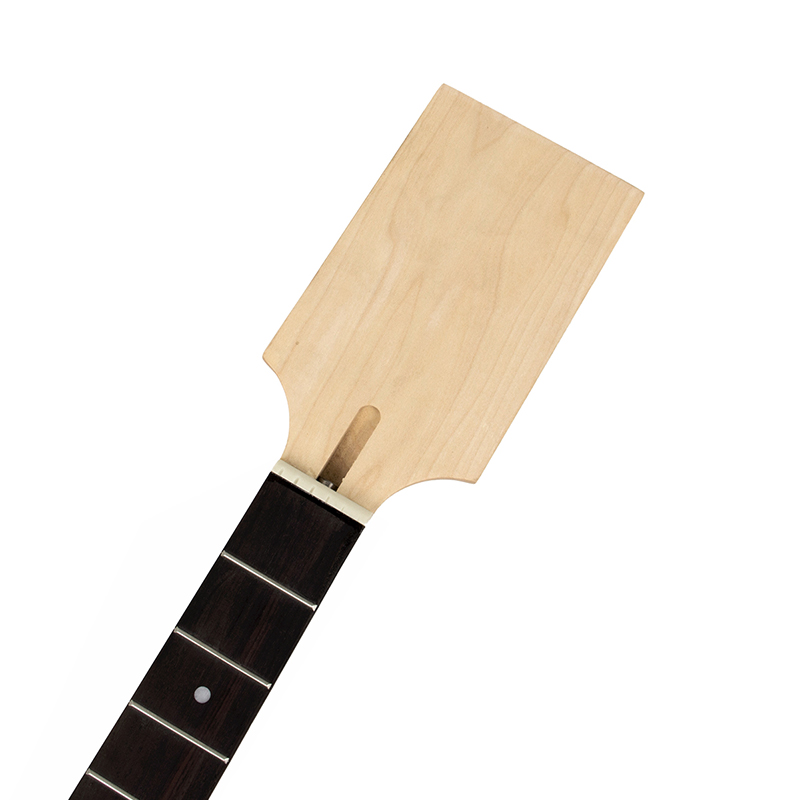

Head DIY Size: 3.94 x 6.02 x 0.41 inch / 100 x 153 x 10.5 mm
Neck Size:
Scale Length: 25.5 inch /648 mm
Number of Frets: 22
Width at Nut : 1.69 inch / 43 mm
Width at 12th Fret: 2.05 inch / 52 mm
Depth at 1st Fret: 0.87 inch / 22 mm
Depth at 12th Fret: 0.94 inch / 24 mm

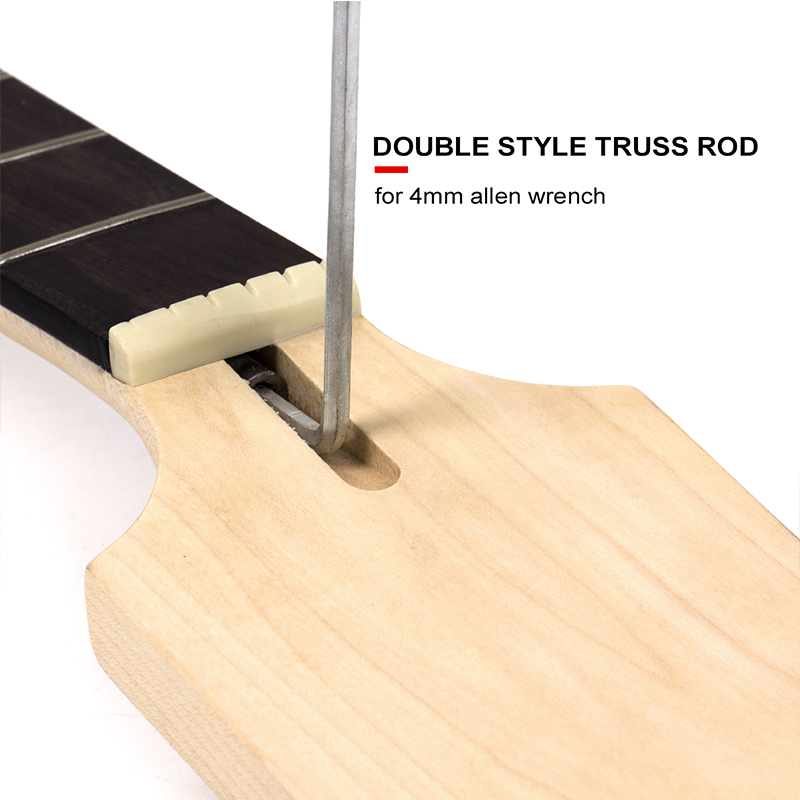

Truss Rod Type: Double Style, for 4 mm Allen Wrench

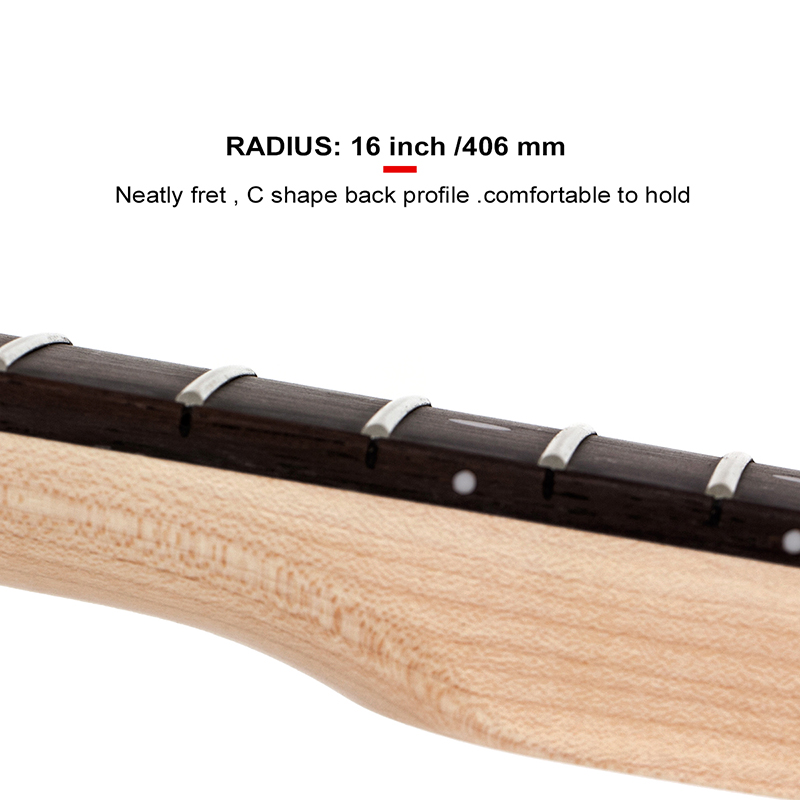

Radius: 16 inches /406 mm

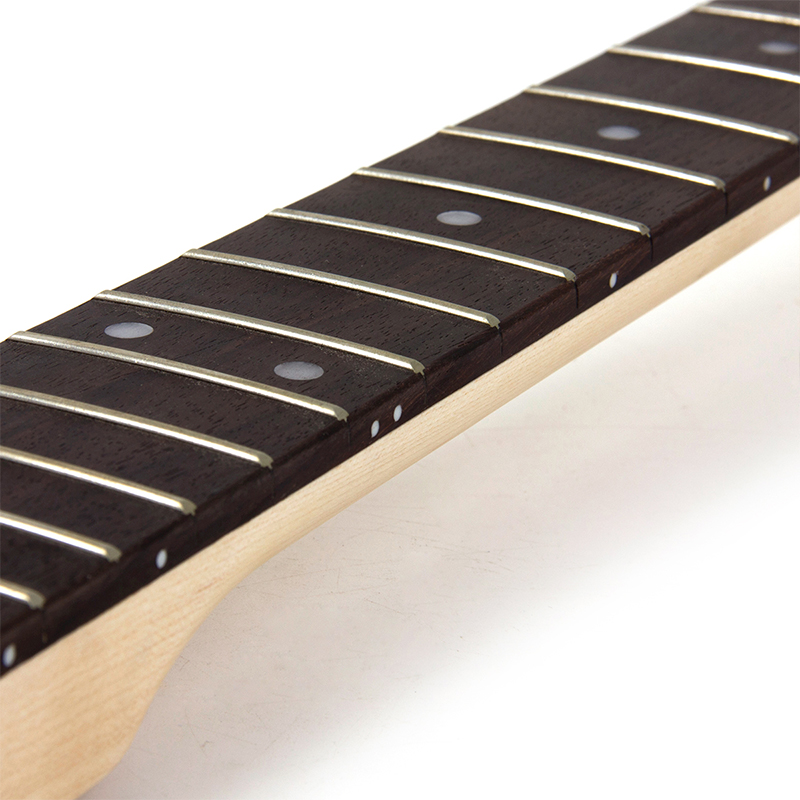

Fret Wire Type: 2.4 mm Medium Jumbo
Side Dot: 2mm ( double side)
Features:
Made of Maple Wood Origin From Canada Which is More Sturdy and Resonance and Sustain Well
Smooth Fingerboard Edge, No Hand Scratched
Installed with Double Style Truss Rod for 4 mm Allen Wrench, So You Can Adjust to Loose or Tighten.
Large Head Area for Your Guitar Design and You can Think freely and Do What You Want
Package Include:
1 x Unfinished Guitar Neck for DIY
Note: guitar neck is handcraft and there may some tiny size error
