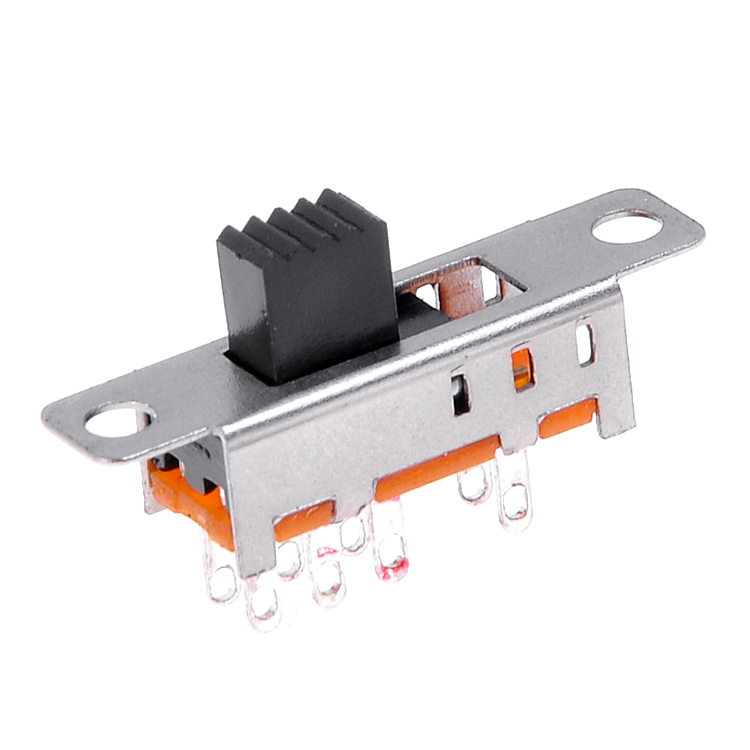

10 Pcs x 3 Position 2P3T DP3T 8 Pin PCB Panel Mount Mini Vertical Slide Switch

comment rank 5 ( 0 ) Reviews MODEL: Z0261 Inventory: 101
Sales price: $4.01
This listing has ended.

Product Details

Shipping & Payment

Reviews

Converter: cm inch
Converter: inch cm
100% new
high quality and testing is fine
Item 100% like the picture shown
Product Name:Slide Switch
Model:SS23E04-G5
Type:2P3T
Contact Type:3 Position, On/On/On
Terminal Quantity:8
Working Power:0.5A 50V DC
Contact Resistance:30mΩ Max
Insulation Resistance:100mΩ Min at 500V DC
Withstand Voltage:AC 500V for 1 min
Mounting Type:Through Hole
Hole Diameter:2.2mm / 0.08"
Pin Size:1.7 x 1.2mm / 0.06" x 0.04"( L * W)
Pin Pitch:1.2mm/ 0.047" & 3.5mm/ 0.14"
Switch Total Size:24 x 6.3 x 12mm / 0.94" x 0.25" x 0.47" (L * W* H)
Knob Size:5 x 3 x 5mm / 0.2" x 0.12" x 0.2" (L * W * H)
Material(External):Plastic, Metal, Electronic Parts
Main Color:Silver Tone, Black
Description:
Features: Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 3 Position, Sliding Knob Actuator.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
Also a great component for DIY.
Package Content:1 0x Slide Switch
